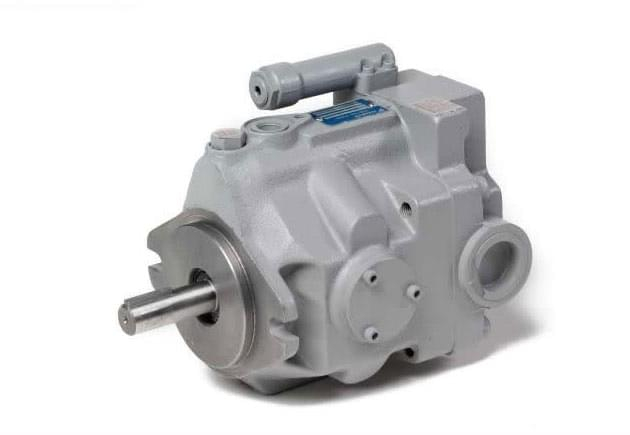

6 series, from 8cc to 70cc

With swash plate construction, are suitable for open loop circuits with adjustable or regulated delivery flow. These units are specially designed for use in industrial application.

Special Characteristics:

• Low external noise levels across the entire pressure range because of specially developed mechanism and bearing design.
• Fast response time and high repetition accuracy for pressure and delivery flow, reducing machine cycle times while at the same time improving reliability.
• Simple first filling with hydraulic medium in mounted state without dismantling any lines, because of an extra locking screw.
• Mechanical adjustment to allow adjustment of delivery flow to suit the application.
• Simple construction for ease of service.

Control Devices

• A - Pressure Compensator Control Mechanical adjustment.
• ARC Remote Pressure Compensator by remote control pilot relief valve.
• D Dual Pressure compensator Control electrically switched.
• SA Combine flow and Pressure Compensator Control.
• CH Combined control pressure and displacement with system pressure.
• CJ Combined
• control pressure and displacement with solenoid valve.

Pressure Adjustment Range

• A1 8-70 Bar
• A2 15-140 Bar
• A3 35-210 Bar
• A4 35-250 Bar

Port position

• Side(RX) or
• Rear (R)

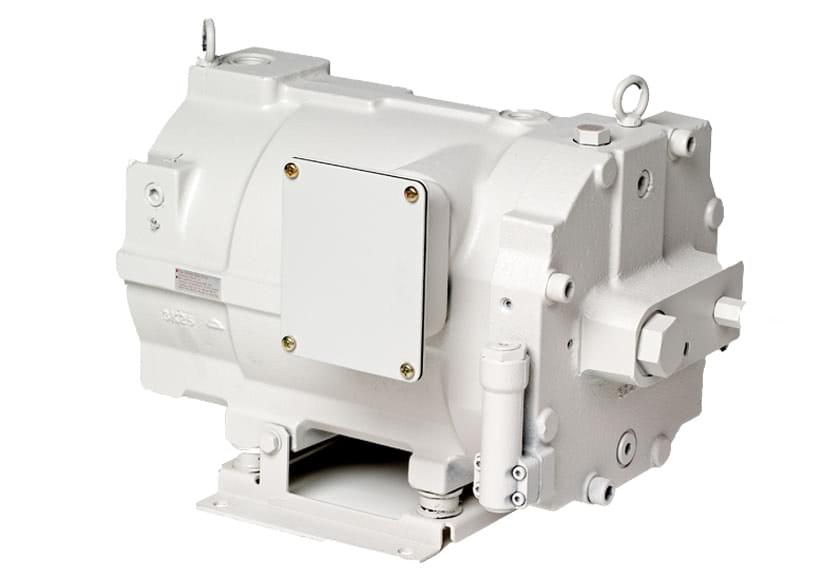

Variable Displacement Pump Integrated in a 415 Volt - 50hz Electric Motor. Vertical mounted for easy access.

Special Characteristics.

• Reduced installation expenditure, no coupling and mounting bracket.
• Reduced installation space (to 40%)
• Smaller oil tank
• Lower weight.
• No external leakage.
• Lower Noise Level (-10 to -15 db(A) )
• Reduced pulsation. to 50%
• Lower Temperature Level.

Displacement.

• 8cc with 0.75kw Motor.
• 15cc with 1.5kw - 2.2kw
• 23cc with 2.2kw - 3.7kw
• 38cc with 3.7kw - 5.5kw

Pressure Rating.

• From 15 bar up to 210 bar.

Special Voltage

• RP - Also available in 200volt - 50hz AC.horizontal mounted.

PLEASE SEE TECHNICAL INFORMATION FOR CONTROLS.

• 5 nominal size, 45 to 200 cm³/U
• pressure to 350 bar
• large range at control options

• 4 nominal size, 63 to280 cm³/U (single pump)
• 2 nominal size, 360 & 560 cm³/U (tandem pump)
• pressure to 400 bar
• large range at control options

Our company is a Kawasaki distributor on the Belarusian market and offers its customers Kawasaki axial piston pumps that meet modern needs, such as high efficiency, low noise and compact design. We offer variable volume pumps that have high performance, are reliable and easy to maintain.

Mobile technology

Axial piston pumps (Open loop)

For construction equipment (excavators, grabs, manipulators, aerial platforms and various industrial machines and their hydraulic control systems) we offer the most suitable axial piston pump from a wide range of options.

 Model

 Pressure (MPa)

 Control type

 K3VLS Series

The most widespread K3VL pumps are due to their advantages:

High power density
High performance
High reliability
High self-priming capability
Wide range of control types
Spherical valve plate
Standard type of installation and ISO and SAE ports
Through drive (option)

Ability to control torque. The main parameters of axial piston pumps Kawasaki K3VL series can be seen in the table:

 Pump model

 Rotational speed, rpm

 Maximum

Industrial equipment

Axial piston pumps (with tilted disc)

We offer compact, high-performance, low-noise Kawasaki axial piston pumps suitable for industrial equipment: casting machines

 Model

 Productivity (cm3)

 K7VG Series

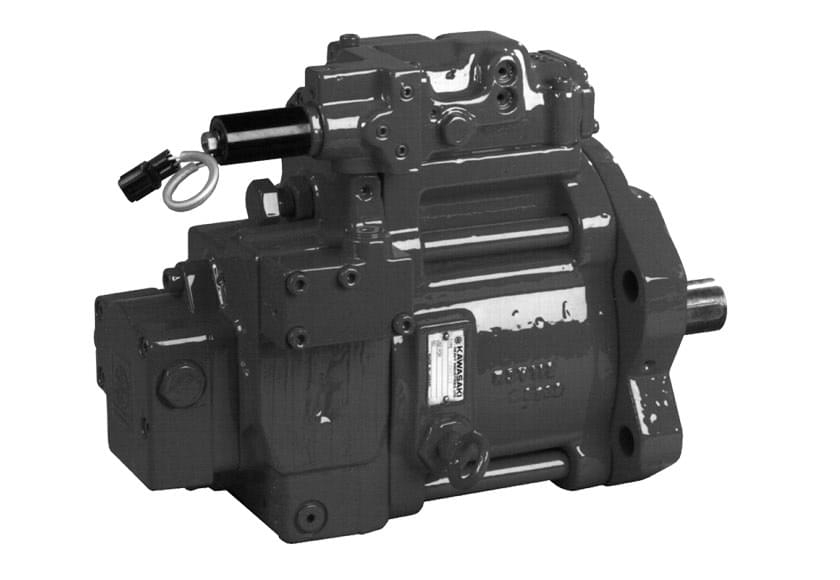

 K3VG Series

• For middle and high drive power
• 15 nominal size, 25 to 147 cm³/U
• pressures to 310 bar

• Pressure compensated (PC) and remote pressure (RP) compensated controls for high control system flexibility.
• Load sensing (LS) technology for optimized hydraulic systems with maximum efficiency and energy conservation.
• Range of mounting flanges for ease of installation
• Available in eight variable displacement sizes

Series 45 pumps are a proven component in hydraulic systems for cranes, telehandlers, forklift trucks, forestry and agricultural machinery and numerous other mobile vehicles.

Axial piston pumps

One class of volumetric pumps are piston pumps. In this mechanism, the movement of fluid is carried out through its displacement from the fixed working chambers of the device. Repression is carried out by so-called displacers. The working chamber of the volumetric pump is a limited space in which alternating communication with the inlet and outlet of the pump takes place. Displacer is a dynamic device displacing fluid from the working chambers. For example: plunger, piston, diaphragm.

Piston pumps are divided into:

1. by type of displacers: piston, plunger, and diaphragm
2. according to the principle of motion of the leading link. For example, cam and crank pumps. In these devices, reciprocating motion, rotational motion
3. according to the number of discharge and suction cycles in one double stroke: one-way action; double acting
4. by the number of pistons: one-and two-piston, as well as multi-piston

Axial piston pump of simple action

The pump piston is connected with a crank mechanism. During operation, the driving member reciprocates in the cylinder.

The principle of operation of a piston pump simple action

Moving the piston to the right creates a vacuum in the working chamber. At this point, the suction valve rises. Further, the liquid from the supply tank enters the working chamber. A piston stroke to the left (reverse) leads to the closing of the suction valve - the discharge valve opens and the liquid enters the pressure pipe.

As a result of each engine revolution, two piston strokes are performed.

To improve the performance of piston pumps, manufacturers make them double, build, etc.

• For middle and high drive power
• nominal size 78; 115; 130; 147; 165 cm³/U
• pressures to 480 bar
• broad electrical controller program

• For middle and high drive power
• nominal size 42 to 250 cm³/U
• pressures to 480 bar
• manual, hydraulic, electrical controller program

• Compact designs offering high power density.
• Complete family of manual, electric and hydraulic displacement controls and electrical automotive controls.
• Various motor displacements available in SAE flange, cartridge and DIN ISO flange configuration.
• Motor ranges with fixed, 2-position and continuously variable displacement controls, including the zero degree option.

The high power transmission solutions secure performance reliability in combines, crawlers, forest machinery and rollers.

• For middle drive power
• nominal size 45; 53.8 cm³/U
• pressures to 400 bar
• broad electrical controller program

• For middle drive power
• nominal size 25; 35; 44 cm³/U
• pressures to 400 bar, with direct control
• pressures to 350 bar, with manual, hydraulic and electrical control

• For middle drive power
• nominal size 28; 41; 51 cm³/U
• pressures to 400 bar
• with manual, hydraulic and electrical control

• For middle drive power
• nominal size 25; 30; 35 cm³/U
• pressures to 350 bar
• with direct control

Performance, power density and functionality are standard features of our medium power axial piston pumps and motors for the diverse off-highway mobile market. We have the displacement, configuration and control option to suit your specific application.
The application of integral servo control technology equips our H1, M46 and Series 42 pumps perfectly for intelligent system design.
Alternatively, Sauer-Danfoss offer pumps based on direct displacement control technology, including an innovative built-in neutral return assist mechanism that saves on space, reduces noise and extends useful life.

• Integral servo pumps (H1, M46, S42)
• Direct Displacement Control pumps (M25, M35, M44, LPV)

• Compact, low-weight pump and motor family for complete system designs
• Pumps available in stand-alone single or integral tandem configurations
• Direct displacement control and integral servo control technologies, ideal for remote manual, hydraulic or electrohydraulic control
• Displacements available from 25-53.8 cc/rev for optimum application flexibility

Try our solutions on your aerial lifts, skid steer loaders, vibratory rollers and forklift trucks and more...
