Sauer-Danfoss electrohydraulical steering components

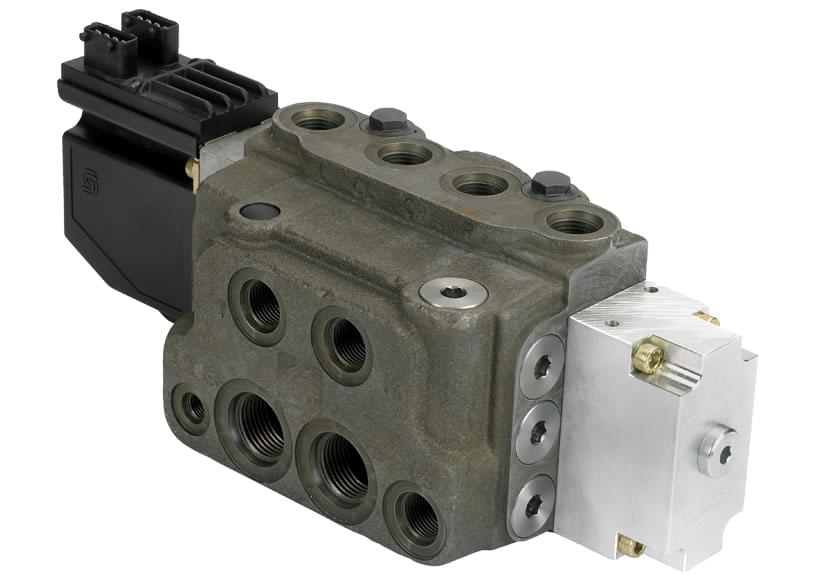

EHPS Typ 0, 1, 2

Features & Benefits

  • Low pilot pressure and flow giving extremely low noise in the cabin
  • Minimal side acceleration or jerk
  • Emergency manual steering possible
  • Embedded steering software for variable steer ratio with PVED-CL and SASA sensor
  • Interface to automatic steering

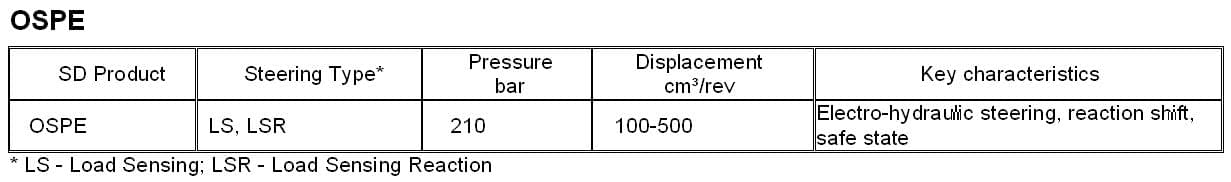

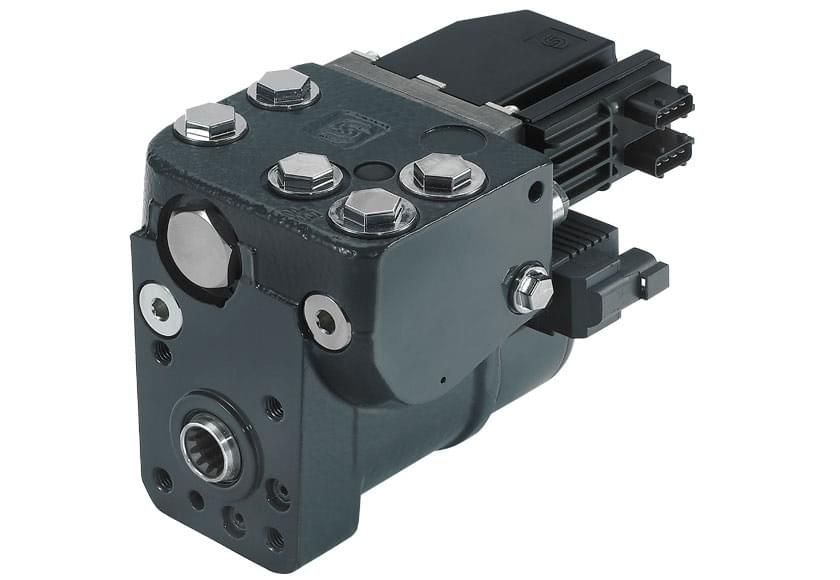

OSPE

Features & Benefits

  • Selectable reactive/non-reactive modes for safe steering with an improved automotive-like feel
  • Isolation of electronics and EH valve when activated, for easier homologation of steer-by-wire features and optimum safety
  • Optional embedded PVED-CL steering controller and SASA sensor for variable steering ratio (Quick Steering) and closed loop control
  • Analogue or ISOBUS interface to automatic steering

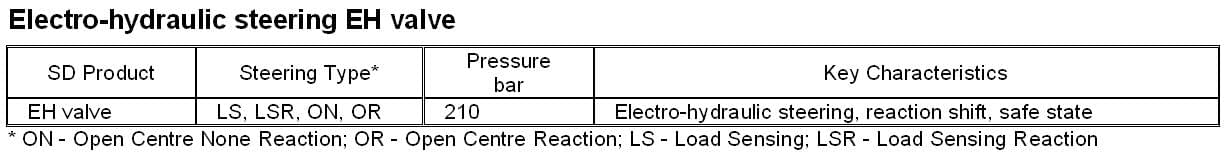

Electro-hydraulic steering EH valve

Features & Benefits

  • PVED-CL and SASA sensor with embedded steering software for a precise, variable steering ratio
  • Interface for automatic steering with GPS
  • Compact design for low system costs
  • Flexible flanged or in-line mounting options

The EH valve is made for high accuracy, automatic steering. As part of a load-sensing steering system, it gives optimum control on all types of terrain. Choose the compact, in-line design when space is limited.
