Comatrol screw-in cartridge valves

Comatrol’s compact, cost-effective cartridge valves combine easily to form almost any hydraulic circuit. Bringing directional, pressure or flow control to your vehicles’ hydraulic systems, they point the way to unlimited design flexibility.
Comatrol manufacture more than 4,000 types of cartridge valve, offering a broad range of flow and pressure capabilities. All fit standard Sauer-Danfoss cavities, which are designed around SAE or metric standard o-ring straight thread ports.

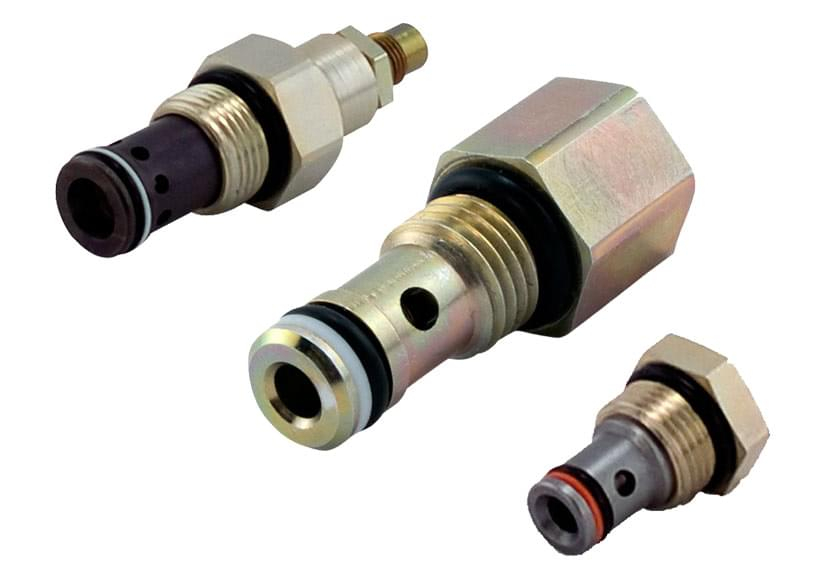

Check valves

Free flow is a one-way street with Comatrol’s reliable check valves − for optimal delivery of hydraulic power to your vehicle functions.
Comatrol offer flow and pressure capabilities of 3-380 l/min [0.8-100 US gal/min] and up to 350 bar [5,080 psi], respectively.

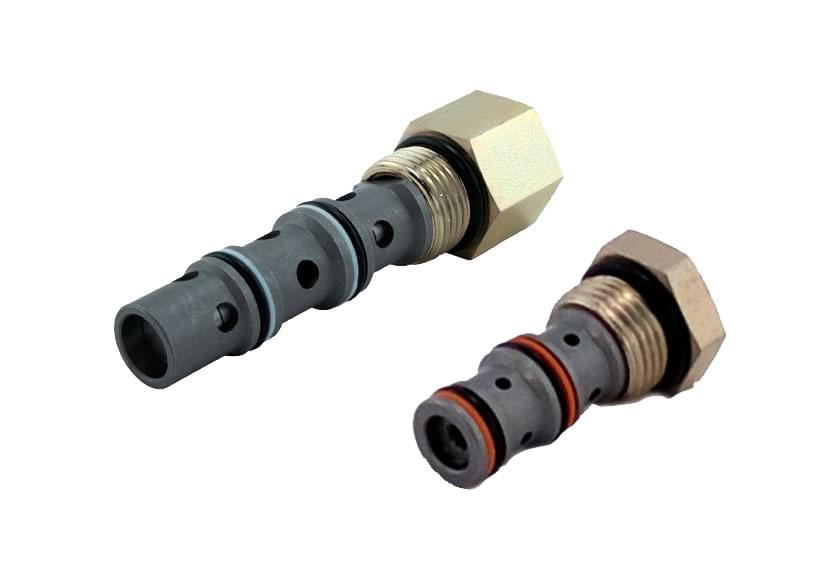

Shuttle valves

Two inputs, one output - Comatrol’s shuttle valves respond to the pressure signal from the highest bidder, imparting hydraulic logic to your load-sensing system.
Comatrol offer flow and pressure capabilities of 4-90 l/min [1-24 US gal/min] and up to 350 bar [5,080 psi], respectively.

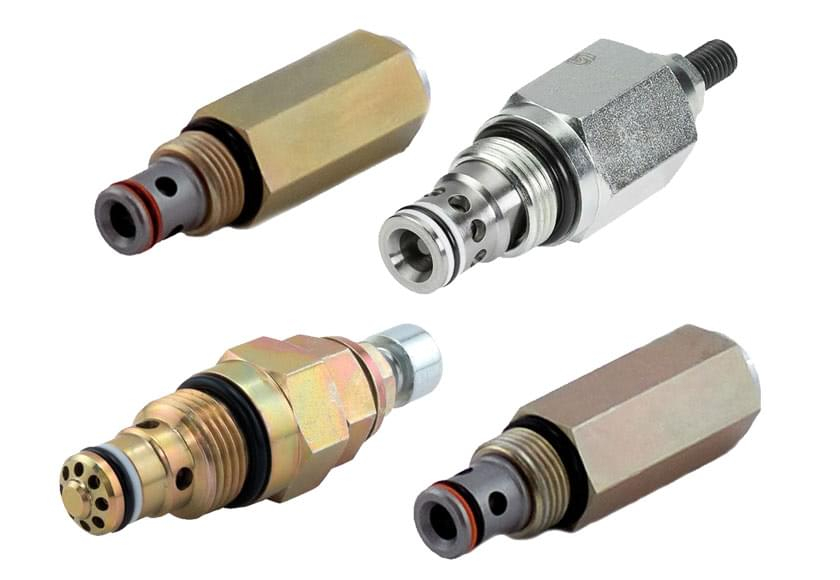

Relief valves

Comatrol’s relief valves keep hydraulic circuit pressure offer flow and pressure capabilities of 1-190 l/min [0.3-50 US gal/min] and up to 415 bar [6,000 psi], respectively.

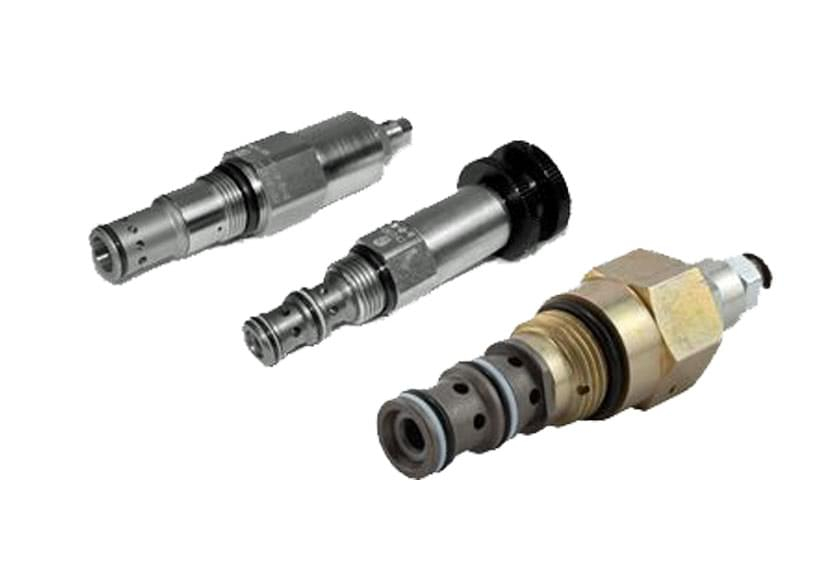

Pressure reducing valves

Comatrol’s pressure control valves offer flow and pressure capabilities of 1-190 l/min [0.3-50 US gal/min] and up to 415 bar [6,000 psi], respectively.

Sequence & unloading valves

Comatrol’s pressure control valves offer flow and pressure capabilities of 1-190 l/min [0.3-50 US gal/min] and up to 415 bar [6,000 psi], respectively.

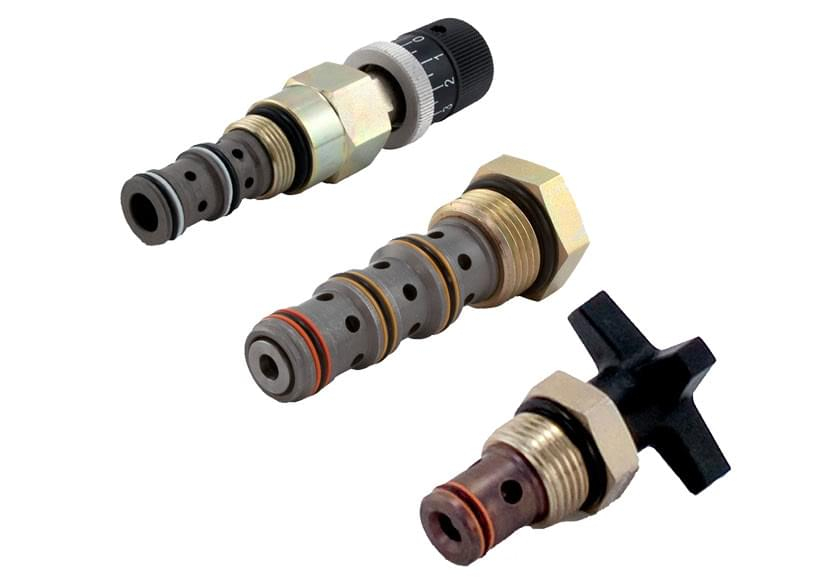

Flow control valves

Depend on Comatrol’s flow control valves to give just the right flow — constantly, offering flow and pressure capabilities of 15-340 l/min [4-90 US gal/min] and up to 450 bar [6,500 psi], respectively.

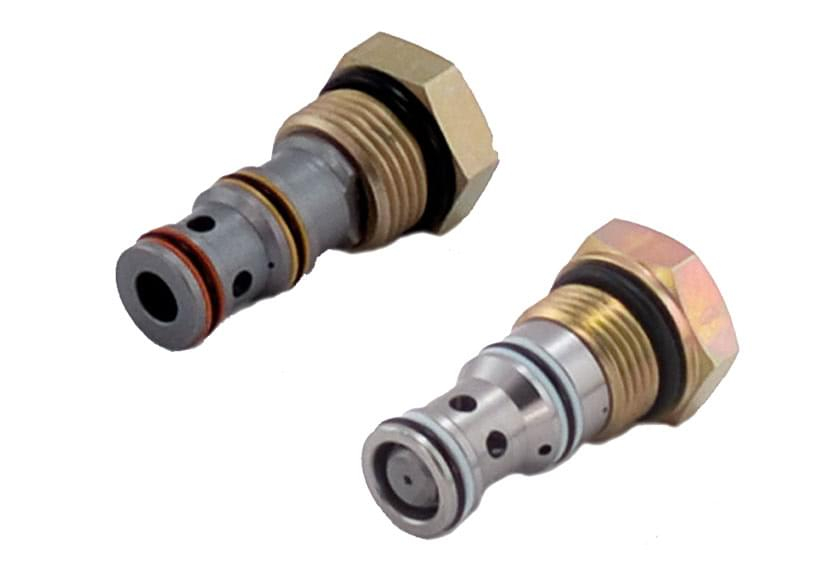

Pilot-operated check valves

Your load is secure with Comatrol’s pilot operated check valves. Designed to keep a hold on loads, these on/off valves only release their grip when a pilot pressure signal is applied to the pilot port, offering flow and pressure capabilities of 12-250 l/min [3-66 US gal/min] and up to 350 bar [5,080 psi], respectively.

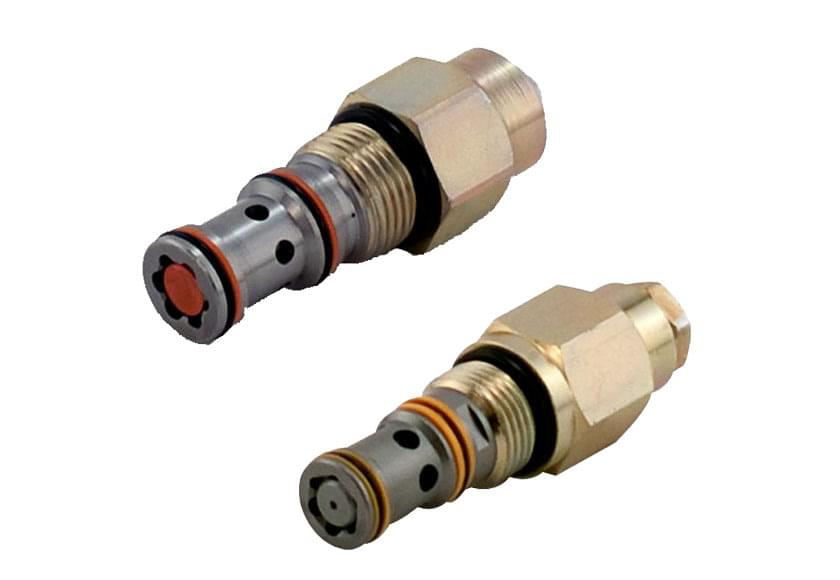

Counterbalance valves

Comatrol’s counterbalance valves keep your vehicle’s load under smooth control - even in the event of a hydraulic failure or leakage. Thanks to their modulated response to pilot pressure signals, these valves always put safety first and offer flow and pressure capabilities of 20-190 l/min [5-50 US gal/min] and up to 350 bar [5,080 psi], respectively.

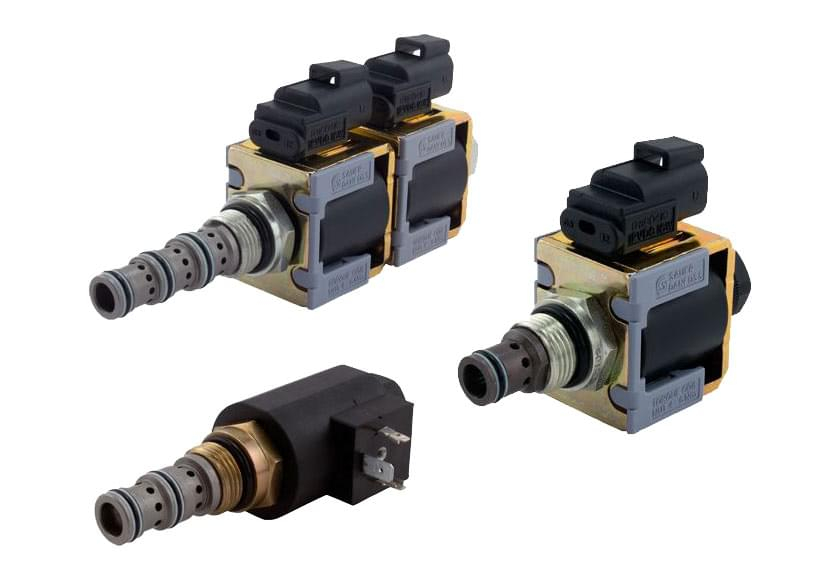

Solenoid valves

Intelligent control is in easy reach with Comatrol’s PLUS+1™ Compliant solenoid valves. This electrically-operated range of on-off poppet or spool-type valves is made for your load-holding, blocking or directional control applications.
All Comatrol’s solenoid valves have PLUS+1™ compliant coils that make them directly compatible with PLUS+1 technology for intelligent mobile machine control.
They offer flow and pressure capabilities of 7-230 l/min [2-61 US gal/min] and up to 240 bar [3,500 psi], respectively.

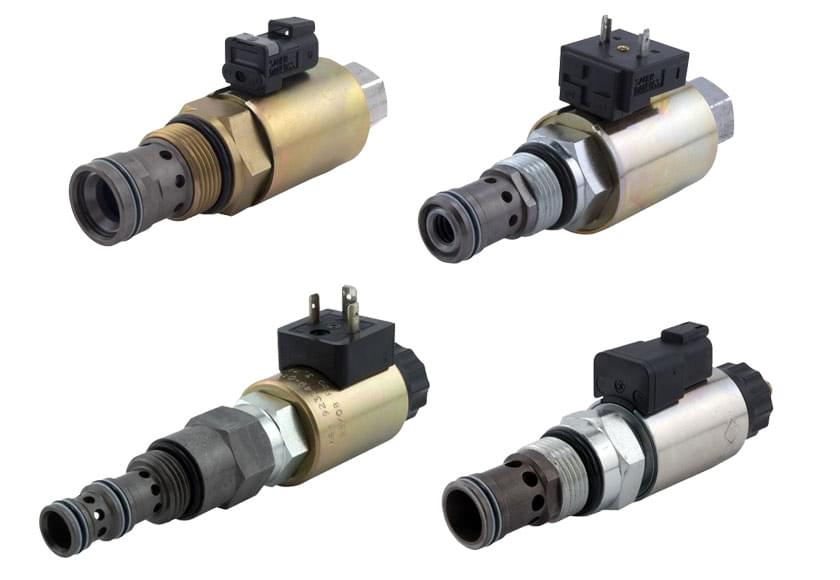

Proportional valves

Flow, pressure and directional control is infinitely variable with Comatrol’s proportional control valves. Each electric input signal sparks a precise response.
All Comatrol’s proportional control valves have PLUS+1™ compliant coils, making them directly compatible with PLUS+1 technology for intelligent mobile machine control.
Comatrol offer flow and pressure capabilities of 5-180 l/min [1-48 US gal/min] and up to 320 bar [4,640 psi], respectively.

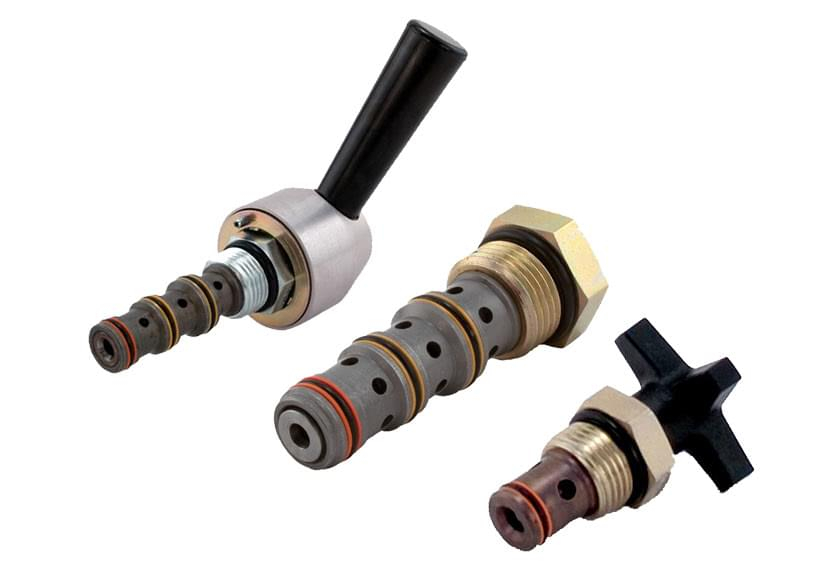

Directional control valves

Whether manually or hydraulically actuated, Comatrol’s directional valves provide the exact directional and flow control your applications require.
