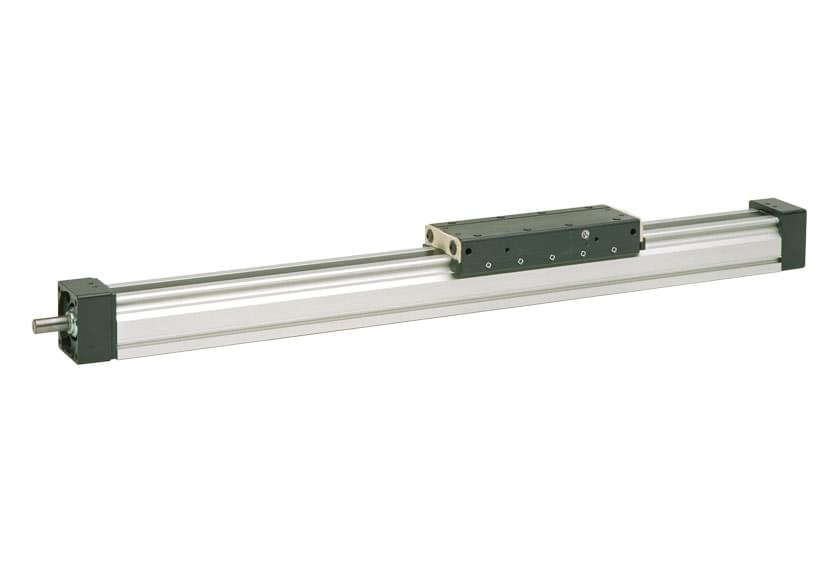

Linear Units with Ball Screw Drive and Slide Guide

BaseLine, Movopart

Typical Applications

Typical applications are where low to medium loads need to be moved at low to medium speed. These units are also suited for harsh environments. Typical examples are all types of machines in the food, chemical, paper and wood working industries.
Materials handling is another area where these units are ideal.

Technical Presentation

Cover band
The durable plastic cover band protect the interior of the unit from the penetration of dirt, dust and liquids.

Central lubrication
One central lubrication point on the carriage services the entire unit resulting in a minimum maintenance required.

Slide guides
The robust and accurate slide guides can be easily replaced by the user whenever required.

Drive
Select between the fast high precision ball screw or the robust lead screw with composite nut.

Screw support
The screw support system reduces noise and vibrations and permits high speeds at long stroke lengths.
