Angle sensors 120°

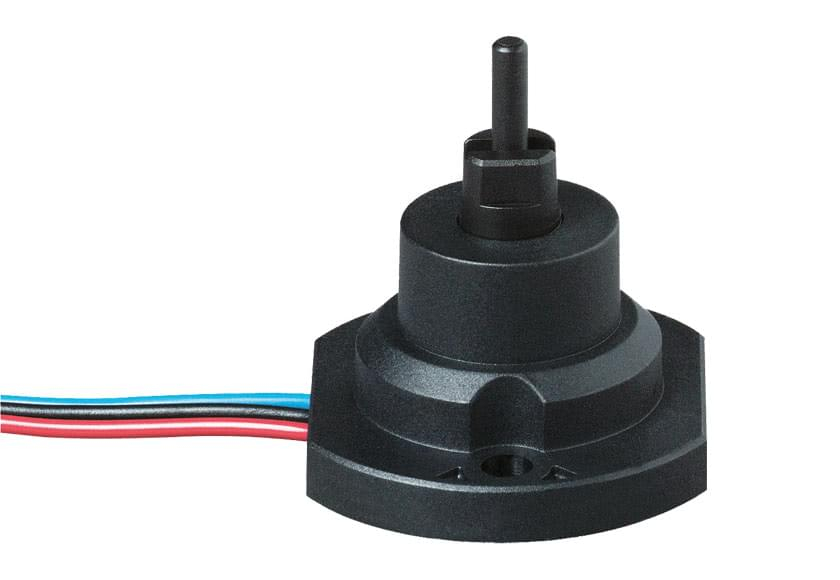

Axial angle sensor

General information
The angular measuring range is between 20° and 120°. The measuring principle is noncontacting (rotating magnetic field over hallsensor). The system is short circuit-proof (with unlimited short circuit duration). There is a mechanical stop at approx. 180°.
The angle sensor meets motor industry EMC standards (DIN 40 839 testing impulses 1, 2, 3a/b; interference withstand 200 V/m; burst 2 kV). The rotary axle is in a plastic bearing. Therefore, no force must act on the rotary axle, i.e. no levers are permitted.

Angle sensor with plain bearing / ball bearing

General information
The angular measuring range is between 30° and 120°. The measuring principle is noncontacting (rotating magnetic field over hallsensor). The system is short circuit-proof (with unlimited short circuit duration). The angle sensor is equipped with a 3-PIN AMP Superseal 1.5 plug. There is no mechanical stop. EMC standards for motor industry (DIN 40839; testing impulses 1, 2, 3a/b; interference withstand 200 V/m). Housing material: PBT.
