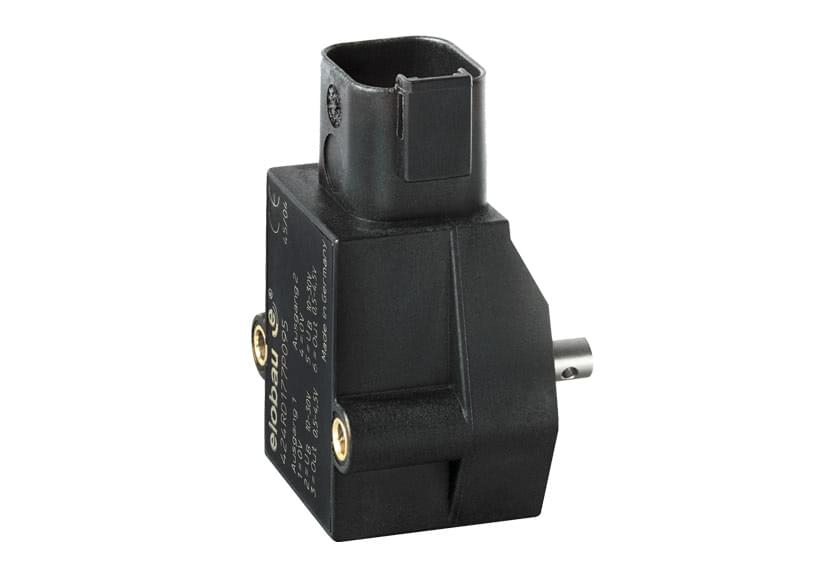

Angle sensor with redundancy

General information
The angular measuring range is between 10° and 120°. The measuring principle is non contacting (rotating magnetic field over hallsensor). The system is short circuit-proof (with unlimited short circuit duration). There is no mechanical stop. The angle sensor meets motor industry EMC standards (DIN 40 839 testing impulses 1, 2, 3a/b; interference withstand 200 V/m; burst 2 kV).

loading...
  • angle sensor with redundancy 840x580
#98905
