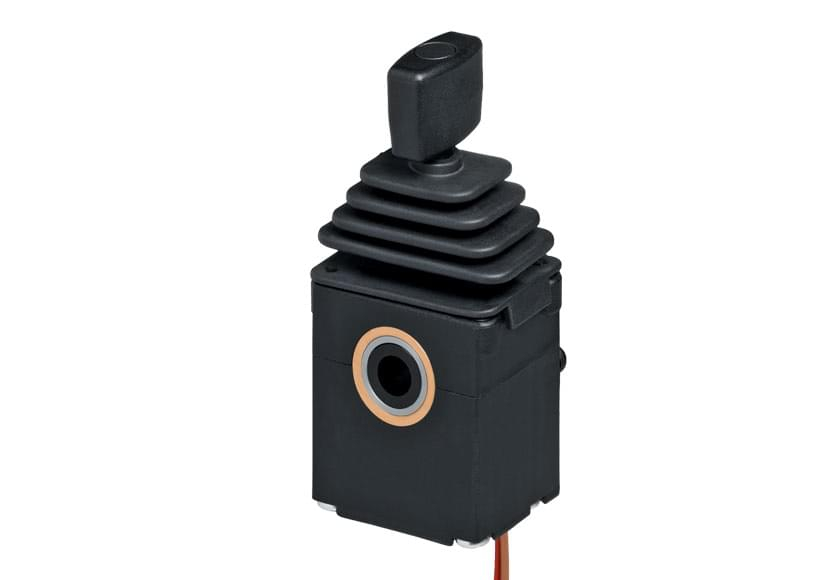

Joystick – single axis

The angular operating range is ±20° (25°).

The operating principle is non-contacting:

  • analogue: rotating magnetic field over hall-sensor
  • digital: reed technique

Short circuit-proof with analogue version (short circuit duration: unlimited). J3 has a 4 PIN Molex 5557 connector, alternatives on request.

EMC proof meets the requirements of the automobile industry DIN 40839 test impulse 1, 2, 3a/b, inter-ference withstand 200 V/m) or EMC 10 V/m, IEC 801-3.
